HG8546M Single Band GPON ONU ONT 1GE+3FE

Certum esse potes ut nativus HG8546M una Band GPON ONU ONT 1GE+3FE emere a nobis possit. Te expectamus cooperantem, si plura scire vis, nunc nos consulere potes, temporaliter tibi respondebimus!

Huawei HG8546M Singula Band GPON ONU ONT 1GE+3FE network terminatio optica est (ONT), quae porta finis domus principalis solutionibus FTTH designata est. Usus technologiae GPON SC/UPC domum dat et SOHO utentes ad interretialem accessum ultra-patendi. HG8546M offert 1 POTS telephonicum portum, 1 GE gigabit portum, 3 Fast Ethernet FE portus et 1 USB portum. Permittit te mittere retis wireless Wi-Fi in cohorte 2.4 GHz, secundum signa IEEE 802.11b/g/n. Maxima transmissio wireless perput 300 Mbps est. Fabrica duabus antennis externis instructa, singula cum lucro 2 dBi. H8546M specimen solutionis terminalis praestat ac facultatem sustentandi officia futura in agro FTTH exsequendi. Productum oblatum certa officia et opera perfecte praebet in utroque domiciliis et parvis negotiis. Cogitatus etiam DC 12 V 1 Potentia copia cum obturatorio Europaeo (non adaptors).


Huawei EchoLife HG8546M GPON ONU - key features

Terminatio GPON ONT

Portus GPON SC/UPC

1 gigabitowy portum Ethernet

III porty Fast Ethernet

I portum USB

I telephonium portum (POTS)

Possibilitas tradendi Wi-Fi retiacula in 2.4 band GHz

Maxime wireless tradendi celeritatem CCC Mbps

Antennae duae externae, singulae cum lucro 2 dBi .

SPECIFICATION

Features / Filtra
Numerus LAN portuum 4x [10/100M (RJ45)]
Latin PON GPON
Wireless Network signa IEEE 802.11g, IEEE 802.11n, IEEE 802.11b,
Portus USB 1x USB
VoIP portus 1x POTS

Specificatio technica

Huawei HG8546M | ONT | WiFi, 1x RJ45 1000Mb/s, 3x RJ45 100Mb/s;

Interfaces
Portus GPON

1 SC/UPC GPON portus, Classis B+

Sensum accipe: -27 dBm

Necem: US 1310 um, DS 1490 nm

WBF

Flexibile tabularum inter GEM et TCONT portum

G.984.3

Dual quadratum FEC

SR-DBA et NSR-DBA

Portus Ethernet

1 x 10/100/1000 BASIS-T (RJ-45) port

3 x 10/100 BASIS-T (RJ-45)

VLAN transmissio perspicua

Portus POTS

Maximum CURSUS: 4

G.711A/u, G.729a/b et G.722

T.30/T.38/G.711 fax

DTMF

Subitis vocat (per HAUSTUS protocol)

Portus USB

1 USB 2.0 port

Facultatem ad creare network coegi fundatur

FTP

WLAN

IEEE 802.11b/g/n

2x2 MIMO

2 dBi Antennas

WMM

multa SSIDs

WPS

Connector type SC/UPC
Characteres corporei
Dimensiones 176 mm x 138 mm x 28 mm (bez anteny)
Libra
Licet operating temperatus range Ab 0°C ad 40°C
Licet aer humiditas 5%-95% RH, non-condensing
Potentia input 100-240 V AC, 50-60 Hz .
Ratio Power 11-14 V DC, 1 A .
Virtus stabilis consummatio 4.5 W
Maximum imperium consummatio 12 W

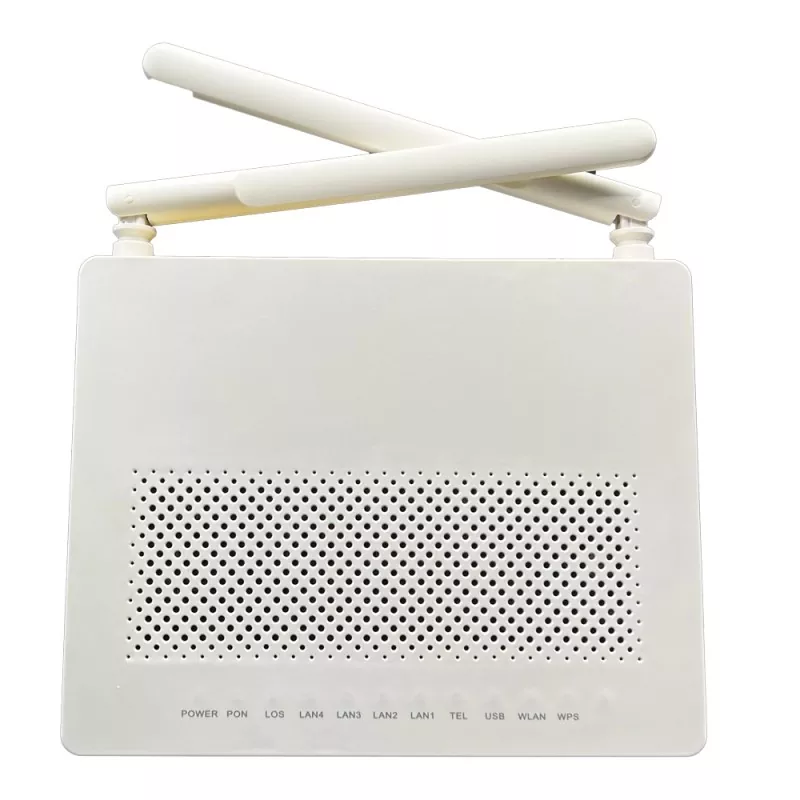

LEDs POTENTIA/PON/LOS/LAN/TEL/USB/WLAN/WPS
Munus
Dolor nexum

Dolor Wi-FI Coverage (V300R015C10 Support)

HAUSTUS/H.248 Acta

Ullus Portus, Any Service

Parentis Imperium (V300R015C10 Support)

Huawei HG8546M | ONT | WiFi, 1x RJ45 1000Mb/s, 3x RJ45 100Mb/s;

Intelligentes operationem et sustentationem

OMCI

Active, passivus ONT Inventio et solitudo

Simulatio Call / Internus, Externus Test

PPPoE / DHCP simulatio Test

WLAN Simulatio

Multicast

IGMP v2/v3 snooping

IGMP v2 ineundo servo

IGMP v3 ineundo (subsidium V300R015C10)

MLD v1/v2 snooping

Wi-FI multicast officia

QoS

Rate Aer Portus Limit

802.1 prioritate

S/WRR/SP + WRR

Rate fasciculum Limit

O&M

OMCI/Web UI/TR069

Dual Tergum et redde Software

Securitas

SPI firewall

Anti- Dos impetum

MAC/IP/URL eliquare
