Tenkilometri species altae HG8546M Singula Band XPON ONU ONT PARVA est eiectio generis terminalis optica unitatis pro solutione FTTH. Per altum operandi facultates promovendi, efficaciter servitium praebet experientiae notitiarum et video definitionis altae, et dat pro FTTH solutiones ideales instruere solutiones ac subsidia facultatum futuri temporis ordinati.
Cum cessum 4K/8K/VR altae definitionis muneris video, industria FTTH novam circum progressionem strenui ingressus est. Negotium requisita ad Sedem altiorem et altiorem questus est, et solutio rerum Gigabit fibrarum ad domum suam ab operariis animum allicit. Huawei porttitor solutiones omnes accessus opticae applicatae sunt ad plus quam 88 primores global operatores.
Eodem tempore Huawei QuickODN innovative QuickODN induxit mutationem technologicam constructioni fibrarum opticorum infrastructuram. Pre-connexio technologiae cognoscit obturaculum et fabula funis optici sine fusione plicationis. Inaequalis ratio optica technologiae scindendi multum minuit quantitatem funis optici adhibiti, normae constructionis percipit et magnum auxilium praebet ad efficientiam constructionis emendandam.
|
exemplar |
HG8546M |
|

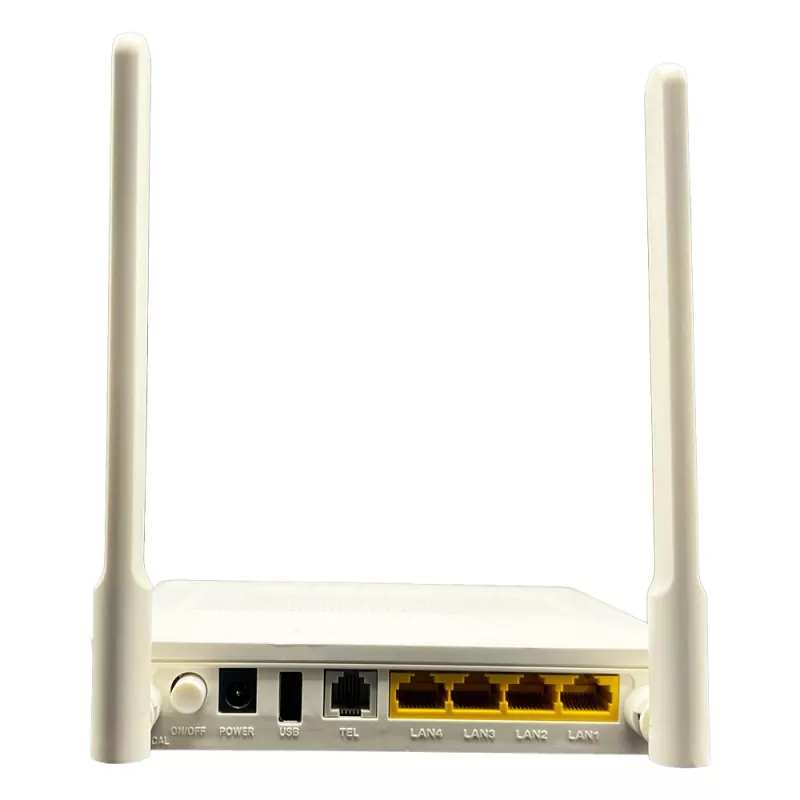

Port |
1 phone+1 Gigabit+2 100M+1iTV+1USB+2.4G Wi-Fi |
|
Pondus |
Proxime. 180 g |
|
opus temperatus |
0°C +40°C |
|
Dimensiones (h×w× d) |
52mm x 105mm x 30mm (exclusis antennae et pede pad) |
|
Statica potentia |
3.6 W |
|
Optical fibra interface |
SC/UPC |
|
Humor opus environment |
5% RH 95% RH, non-condensans |
|
Virtus nibh initus |
170 240 V AC, 50/60 Hz |
|

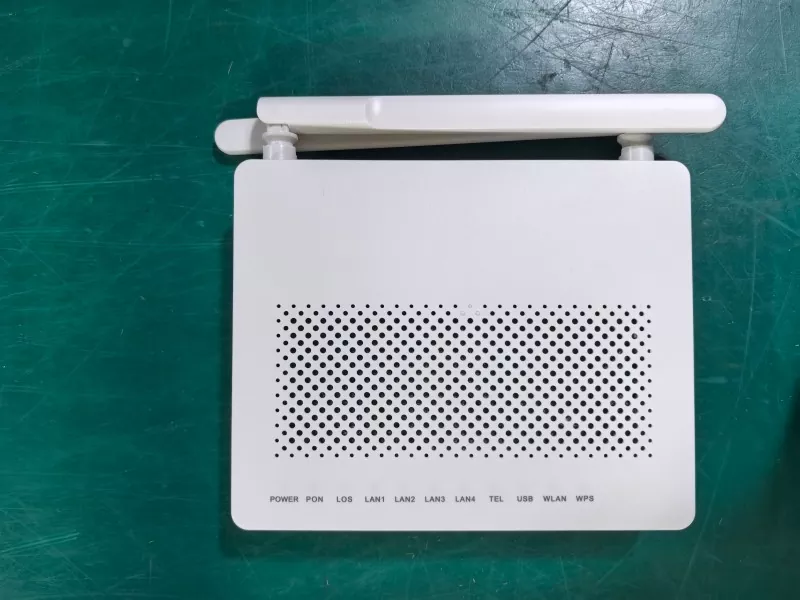

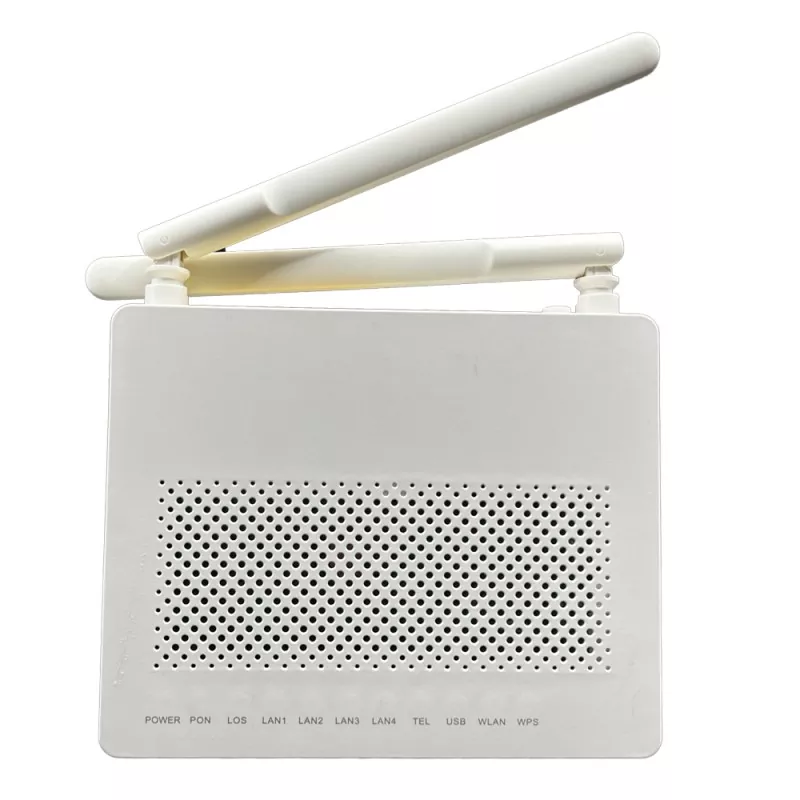

indicator lux |
Virtus/Fiber/Broadband/Wireless/Storage |
|
Tota machina potentia copia |
11 14 V DC, 1A . |
|
Maximum imperium consummatio |
12 W |
|
Network latus interface |
GPON/EPON |
|
iungo optica fibra |
SC/UPC |
|
Fulmen praesidium specifications |
GE port: modus communis 6kV, modus differentialis 1.5kV |
|
AC potentia copia sustentans: modus communis 6kV, modus differentialis 6kV, impetus differentialis currentis modus 3kA |
|
|
indicator lux |
PWR/PON/LOS/LAN/PoE+/PoE++ |
|
GPON interface |
GPON: Classis B+ |
|
Sensus percipiendi: -27dBm |
|
|
ONERO potentia optica GPON: -8dBm/EPON: -3dBm |
|
|
Necem: flumine 1310nm, amni 1490nm |
|
|
Necem interclusio filter (WBF) supporting G.984.5 protocol |
|
|
Authenticatio methodi: SN/Password/LOID(GPON) |
|
|
Duo-modo FEC (Accede error orrectio) |
|
|
DBA supportantes SR et NSR |
|
|
GE interface electrica |
VLAN Tag/Tag spoliare secundum Aer portum |
|
1:1 VLAN/N:1 VLAN/VLAN transmissio perspicua |
|
|
Q in Q VLAN |
|
|
MAC oratio restrictiones |
|
|
MAC oratio cognita |
|
|
Gigabit port supports 10Mbit/s, 100Mbit/s, 1000Mbit/s adaptive |
|
|
100Mbit/s portum sustinet 10Mbit/s, 100Mbit/s adaptive |
|
|
2.4G Wi-Fi |
IEEE 802.11 b/g/n |
|
2×2 MIMO |
|
|
Antennae gain:5dBi |
|
|
WMM (Wi-Fi Multi Media) |
|
|
multa SSID |
|
|
WPS |
|
|
Air interface rate: 300 Mbit/s |
|
|
Phone port |
Maximus numerus telephonicus uni portui in parallelis connexis: 4 REN Support G.711A/u, G.722, G.729a/b cod. |
|
Support T.30/T.38/G.711 fax |
|
|
DTMF |
|
|
• Subitis vocationem (HAUSTUS protocol) |
● PON characteres
Classis B+ Susceptio sensibilitatis: -27dBm ONERO potentiae opticae GPON: -8dBm/EPON: -3dBm Necem: fluminis 1310nm, amni 1490nm Necem interclusionis colum (WBF) G.984.5 protocollum authenticitatis methodi sustentans: SN/Password/LOID(GPON ) Duo- via FEC (Error deinceps orrectio) DBA supportantes SR et NSR
● Aer accessum facultatem
Ethernet-substructio VLAN Tag/Tag nudans 1:1 VLAN/N:1 VLAN/VLAN transmissio perspicua Q in Q VLAN MAC inscriptio restrictio MAC inscriptio discendi Gigabit portum sustinet 10Mbit/s, 100Mbit/s, 1000Mbit/s adaptivam 100 Portus mega fovet 10Mbit/s, 100Mbit/s adaptive
● Wi-FI accessum facultatem
IEEE 802.11 b/g/n 2×2 MIMO antennae lucrum: 2dBi WMM (Wi-Fi Multi Media) Multi-SSID WPS aeris interfaciei rate: 300 Mbit/s
