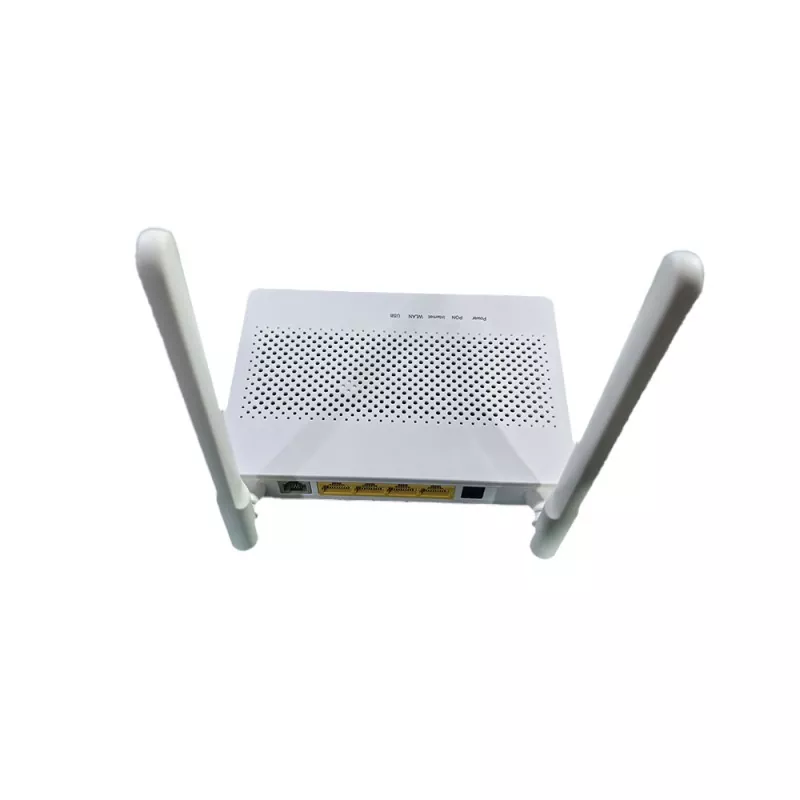

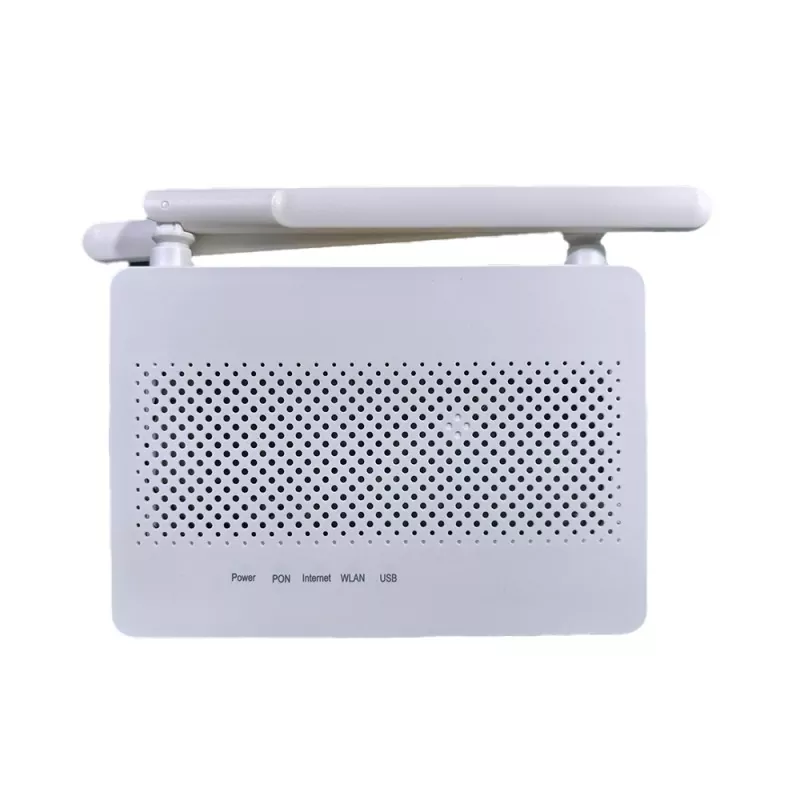

TENKILOMETERS princeps qualitas HS8145C5 Singula Band XPON WIFI ONU ONT Terminatio optica Network (ONT) GPON, ora incisura portae domus solutionis FTTH designatae.
Technology GPON levans, accessum ultra-latum ad domos et officia parva tradit. Uno POTS portu instructus, unus Ethernet (GE) portu, et tres Portus Fast Ethernet (FE) auto- accommodantes, una cum Wi-Fi portu, hoc procurat inconsutilem connectivity pro variis machinis.
Summus perficientur facultates promovendi, eximiam experientiam usoris in VoIP, Internet, et HD operas video praestat. Haec est specialis solutio terminalis, praesens servitium futurum promatum auxilium pro FTTH instrumentorum.
|
Product Description |
|
|
Technical items |
Descriptiones |
|
|
|
|
Ex Portus continet |
1GE+3FE+POT+UB+WiFi |
|
WIFI signum |
2.4G WiFi |
|
Wireless quaestum |
2db |
|
USB |
2.0 |
|
LAN |
1*10/100/1000Mbps adaptiva Aernis portus, duplex/dimidium, RJ45 interface |
|
TEL |
H248/SIP Voice Protocol |
|
PPPOE PONS |
Support |
|
Firmware |
Anglicus |
|
Dimensio / pondus |
153mm* 125mm* 32mm/176g |
|
Fibra port |
1 GPON /EPON interface, ingluvies, fibra, defluxus rate 2.5Gbps, rate 1.25Gbps Fluvius |
|
Necem |
Tx 1310nm, Rx 1490nm |
|
Fibra interface |
SC/UPC/APC Singal mode |
|
RX sensus |
>-28dBm (1490um) |
|
DC potentia |
12V 1A, externa potentia AC-DC adaptor |
|
Button |
Reset, Potestas, Wlan, Wps |
|
Operatio |
Temperatura laborantis: -5- +55℃ humiditas laborat: 10-90% (non-condensatio) |
|
Repono |
Repono caliditas: -30℃- +60℃ humiditas repono: 10-90% (non-condensatio) |
Connector Type: RJ-11
Transmissio Rate: 64 kbit/s
● Cable Type: Twisted Patr
● Line Coding: Pulsus Code Modulation (PCM)
● Frame Protocol: Time Division Multiplexing (TDM)
Latin Compliance: ITU-T Q.551, ITU-T Q.552
Features:
1. Plug-and-Play: Facillime officia explica cum uno strepita in NMS, necessitatem in-site configurationis tollendo.
2. Longinquus Diagnosis: Remota culpa detectio per ansam recta probatio POTS portuum, vocant aemulationem, et PPPoE horologii aemulationem.
3. Link Cras: Consequi finem-ad-finem detectio nexus cum 802.1ag Ethernet OAM, retis stabilitatem procurans.
4. Summus Celeritas Transmissio: Usus 900 Mbit/s transmissio in missionibus NAT, ut celeritas transmissio data.
5. IPv6 Facultas: Stipes IPv6/IPv4 dualis acervus et DS-Lite, ad compatibilitatem praestandi cum signis retis hodiernis.
