HN8145X6 Dual Band Wifi6 XG-PON ONU ONT
  • HN8145X6 Dual Band Wifi6 XG-PON ONU ONTHN8145X6 Dual Band Wifi6 XG-PON ONU ONT
  • HN8145X6 Dual Band Wifi6 XG-PON ONU ONTHN8145X6 Dual Band Wifi6 XG-PON ONU ONT
  • HN8145X6 Dual Band Wifi6 XG-PON ONU ONTHN8145X6 Dual Band Wifi6 XG-PON ONU ONT
  • HN8145X6 Dual Band Wifi6 XG-PON ONU ONTHN8145X6 Dual Band Wifi6 XG-PON ONU ONT
  • HN8145X6 Dual Band Wifi6 XG-PON ONU ONTHN8145X6 Dual Band Wifi6 XG-PON ONU ONT
  • HN8145X6 Dual Band Wifi6 XG-PON ONU ONTHN8145X6 Dual Band Wifi6 XG-PON ONU ONT
  • HN8145X6 Dual Band Wifi6 XG-PON ONU ONTHN8145X6 Dual Band Wifi6 XG-PON ONU ONT

HN8145X6 Dual Band Wifi6 XG-PON ONU ONT

TENKILOMETERS opifices HN8145X6 BAND DUAL WIFI6 XG-PON ONU ONT FTTH est Terminatio optica 10G PON cum 4*GE+1*POTS+2*USB+2.4G/5G 11ax WIFI, 5dBi WiFi 6

Band HN8145X6 DUAL WIFI6 XG-PON ONU ONT FTTH est intelligens Wi-Fi 6 genus 10G Network opticum terminatio cum 4 GE portibus, 1 POTS portum, et 2 USB portum, ac 2.4G et 5G Wi-Fi connectivity. HN8145X6 Gigabite Passive Optical Network (GPON) adhibet technologiam ut accessum praebeat ultra-latera, alta perficiendi, late coverage pro utentibus, ut eximium usum vocis, datae, et eximium Definitio (HD) operas video et subsidia capabilities servitii futuri orientatur. et procuratio retis subjicitur, Ergo Huawei HN8145X6 10G FTTH subsidia incepta validissima solutiones accessus omnium opticorum construunt.

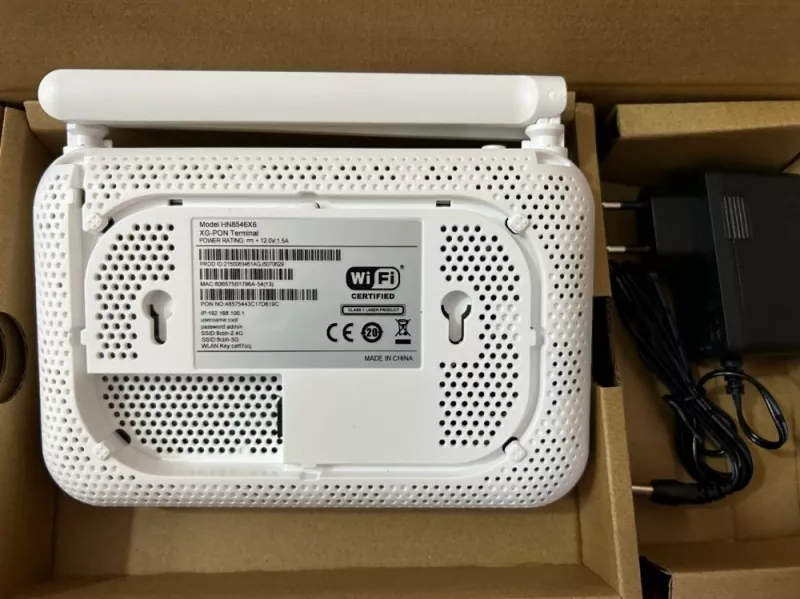

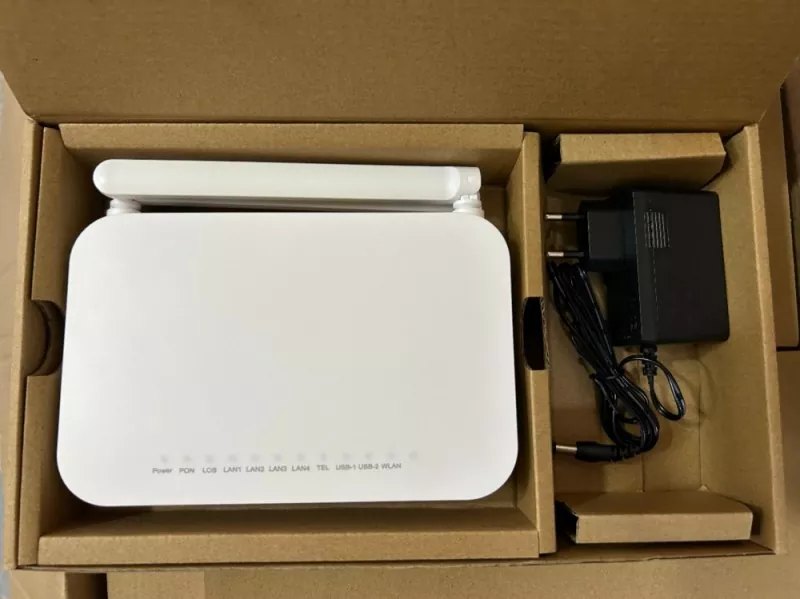

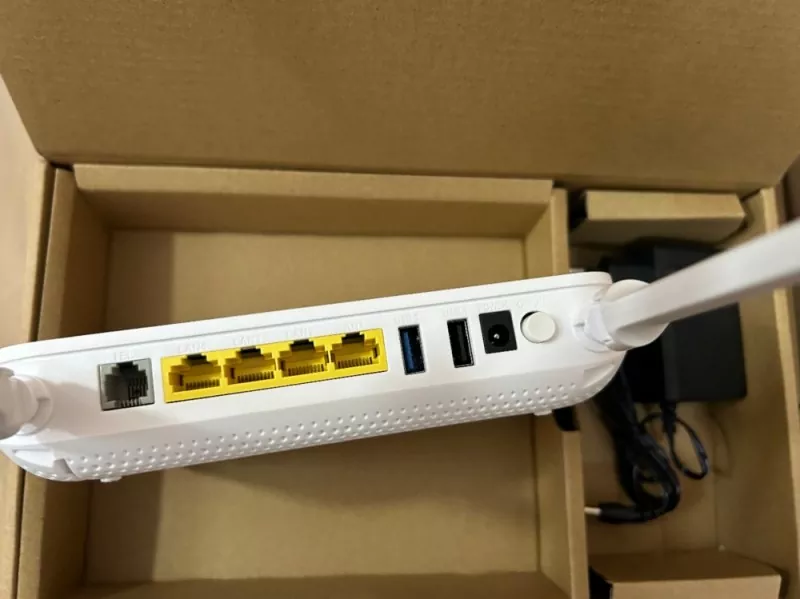

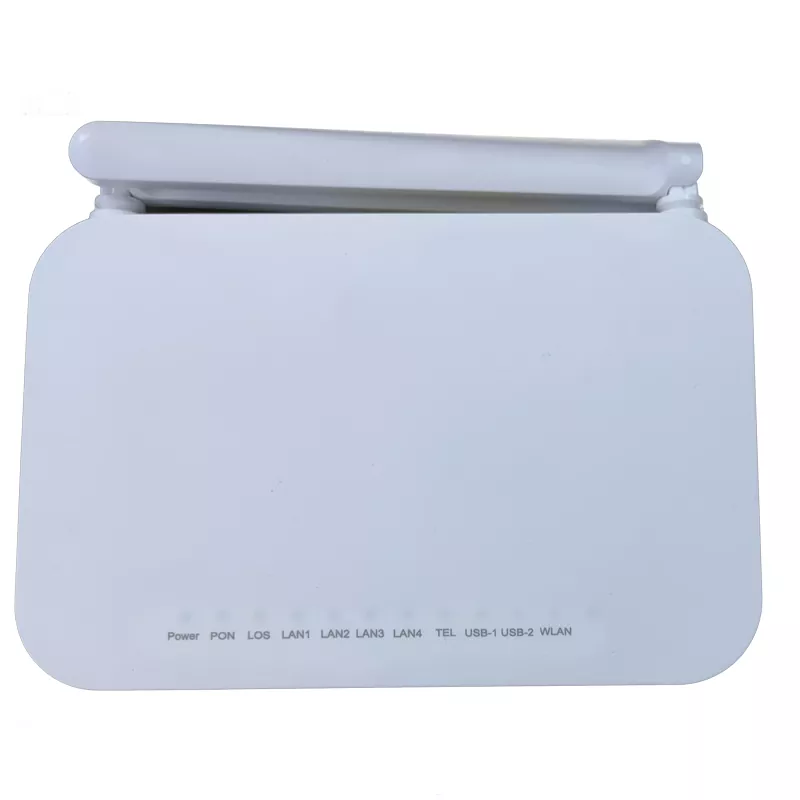

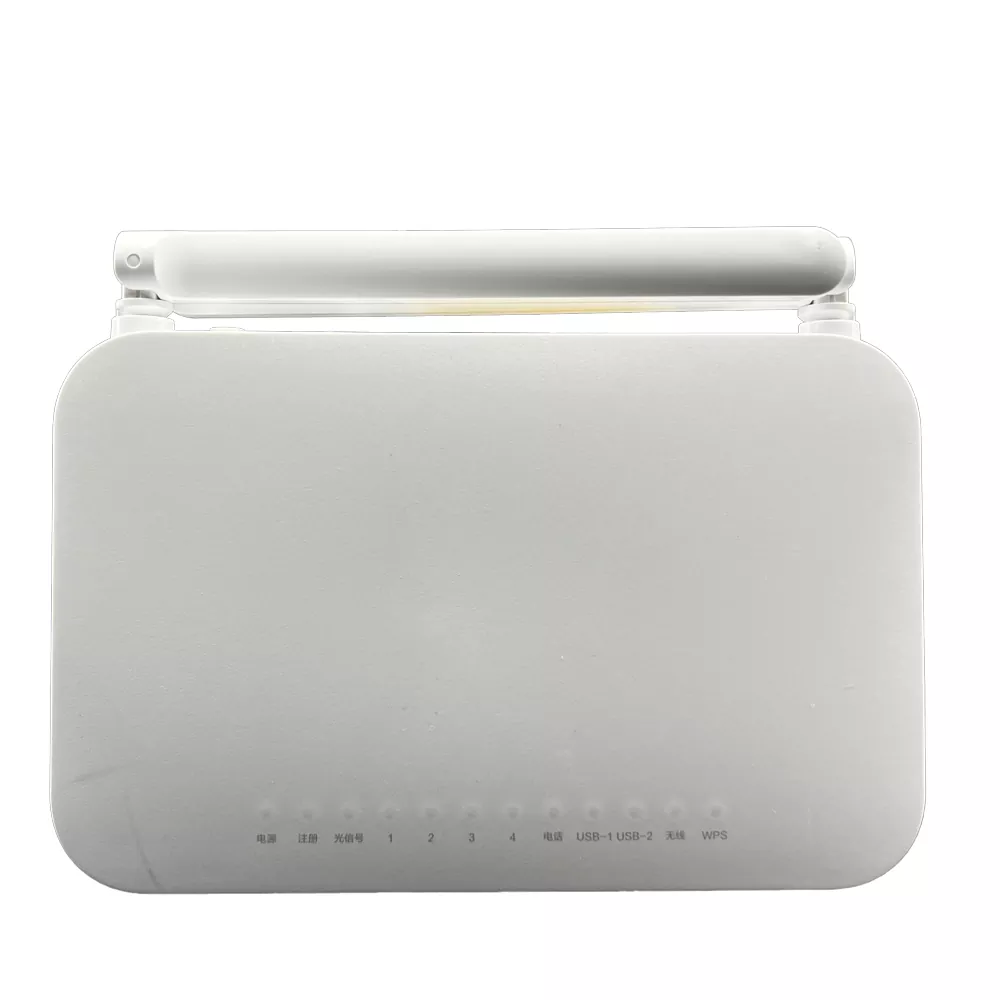

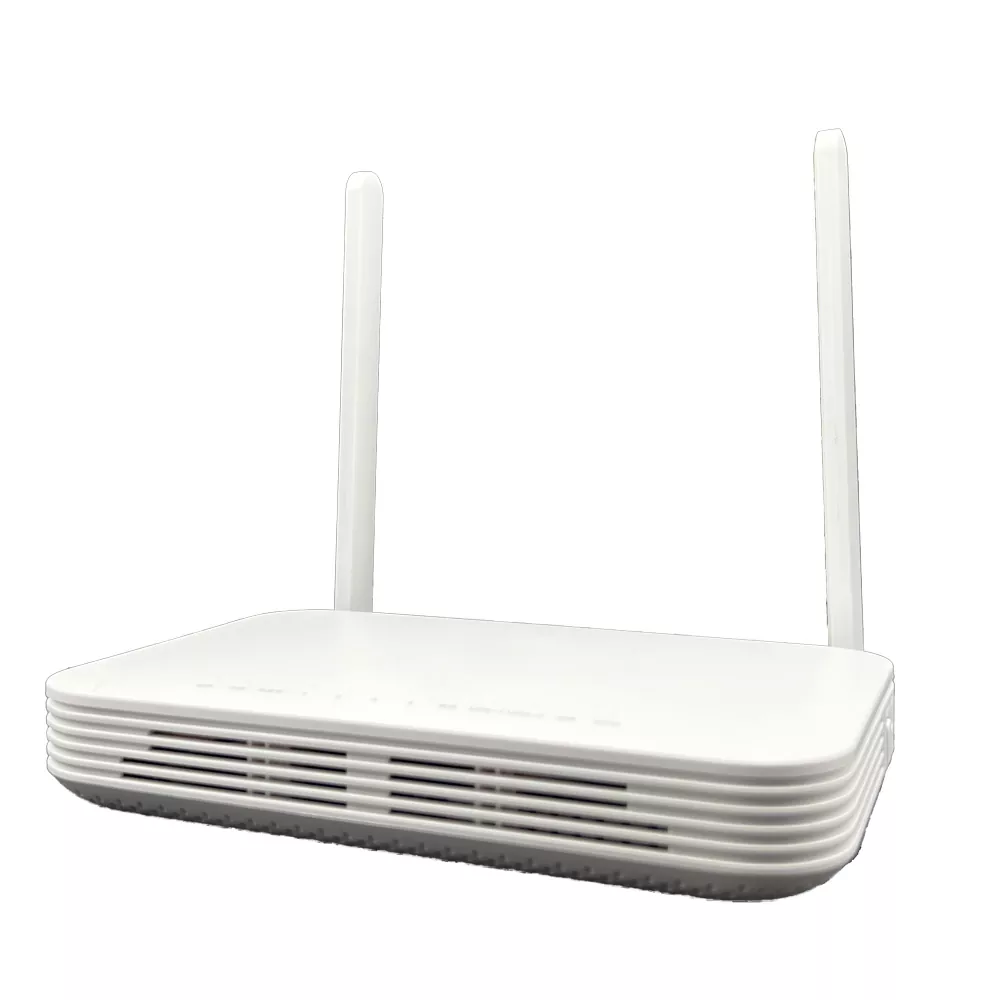

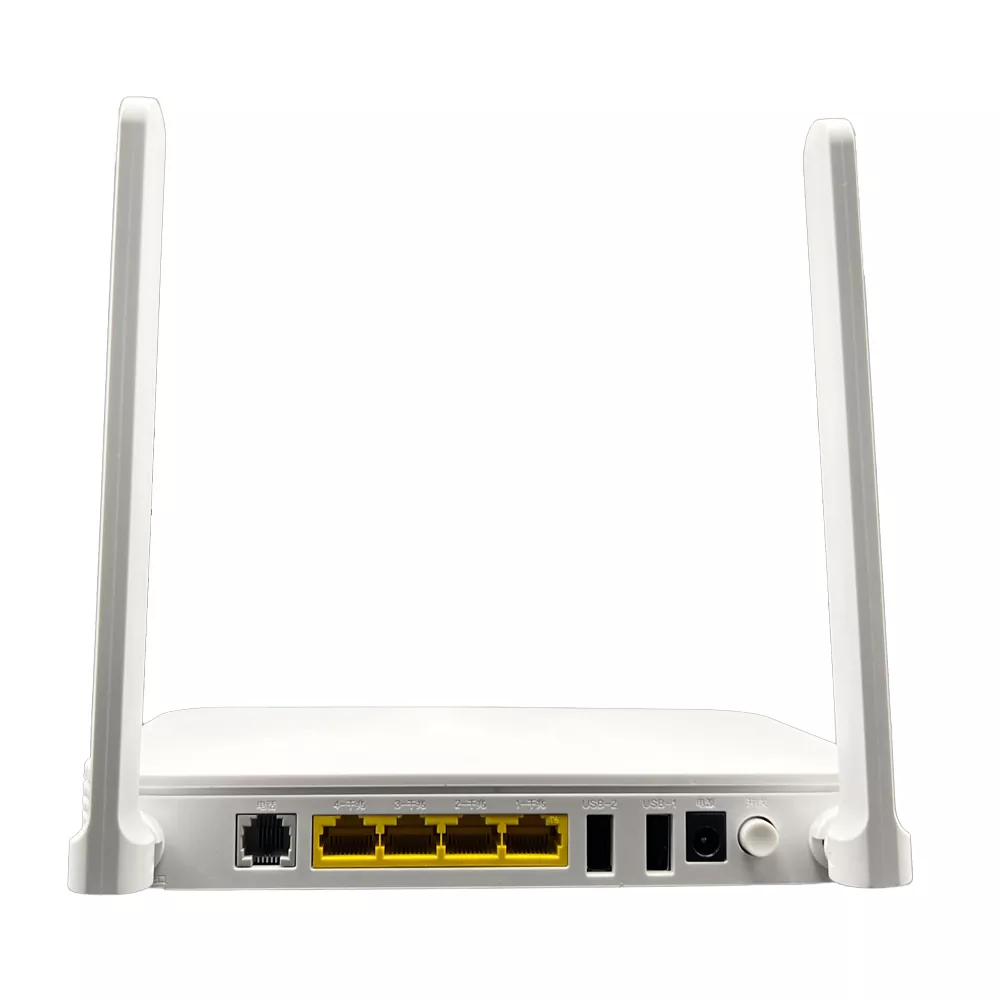

HN8145X6 DUAL Band WIFI6 XG-PON ONU ONT FTTH Product Pictures

HN8145X6 Dual Band Wifi6 XG-PON ONU ONTHN8145X6 Dual Band Wifi6 XG-PON ONU ONTHN8145X6 Dual Band Wifi6 XG-PON ONU ONTHN8145X6 Dual Band Wifi6 XG-PON ONU ONT

HN8145X6 DUAL Band WIFI6 XG-PON ONU ONT FTTH Product Specifications

Item

HN8145X6

Network-latus Portus

GPON/EPON

User-parte portuum

4*GE+1*POTS+2*USB+2.4G/5G 11ax WiFi (Wi-Fi 6)

Virtus stabilis consummatio

5.3 W

Maximilianus. potentia consummatio

18 W

WLAN

2.4 GHZ: 802.11n 5 GHZ: 802.11ax

Potentia specifications

Virtus adaptor initus: 100 ad 240 V AC, 50-60 Hz Ratio potentiae supplendi: 11-14 V DC, 1.5 A

Indicatores

POTENTIA/PON/LOS/TEL/LAN/WLAN/WPS/USB

opus environment

Temperatus operans: 0ºC ad 40ºC Environment humiditas: 5% ad 95% (noncondensing)

Dimensiones (longitudo x latitudo x altitudo)

195 mm x 125 mm x 35 mm

Pondus

circiter 370 g

HN8145X6 DUAL Band WIFI6 XG-PON ONU ONT FTTH Product Features

Receptor sensus: -27 dBm ad -29 dB

Overload optical power: -8 dBm

Necem: US 1310 um, DS 1490 nm

Necem Clausus Filter (WBF) de G.984.5

Flexibile mapping inter portum GEM et TCONT

GPON: consistent cum SN vel password authenticas definitas in G.984.3

SR-DBA et NSR-DBA

Type B (single-homing and dual-homing)

Aer portum-fundatur VLAN tags et tag remotionem

1:1 VLAN, N:1 VLAN vel VLAN transmissio perspicua

QinQ VLAN

Mac oratio limite numerum doctorum

MAC oratio cognita

Auto celeritatum portus (10/100/1000 Mbit/s)

Maximum CURSUS: 4

711A/μ, G.729a/b, et G.722 descriptam/decoding

30/T.38/G.711 fax modus

Subitis vocat (cum HAUSTUS protocol)

Hot Tags: Proin
Mitte Inquisitionem
