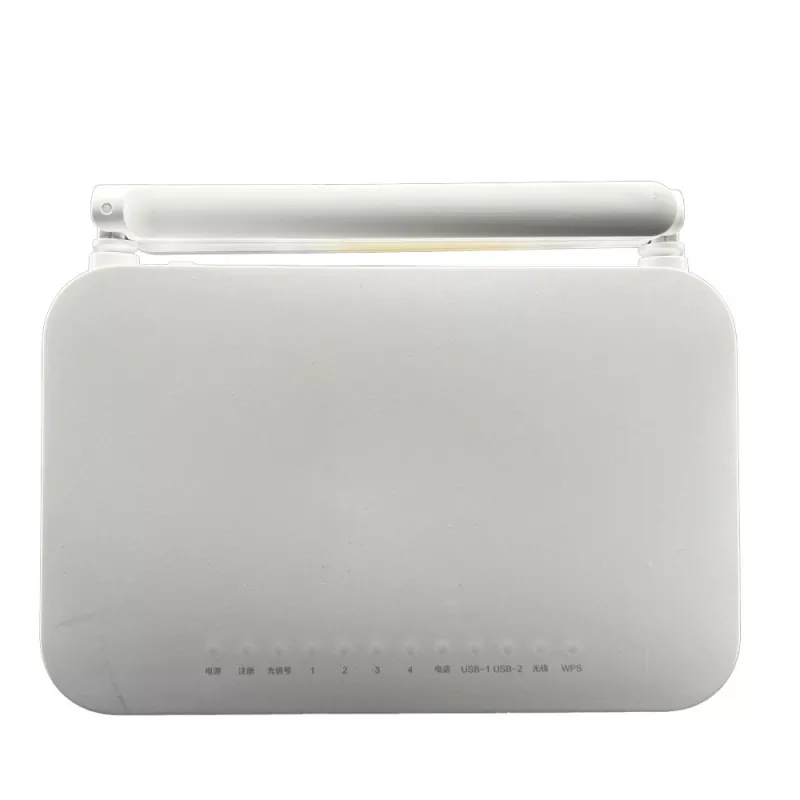

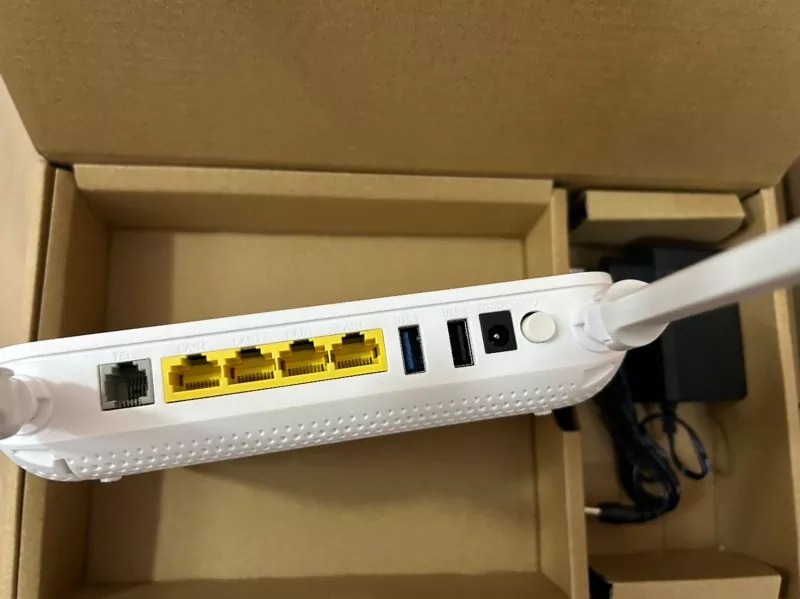

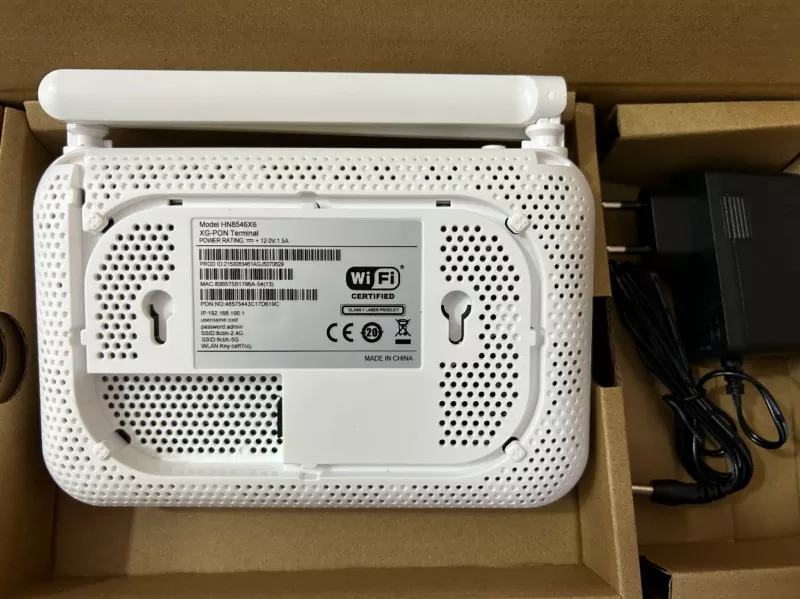

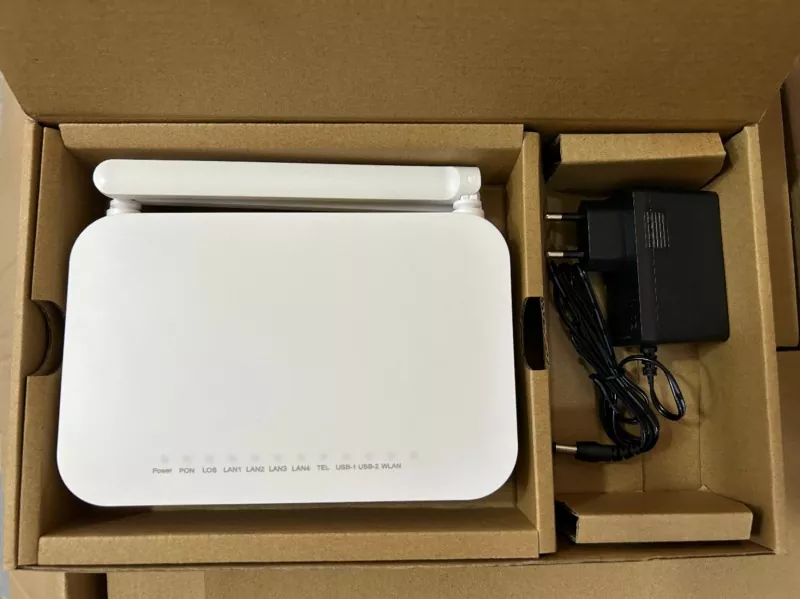

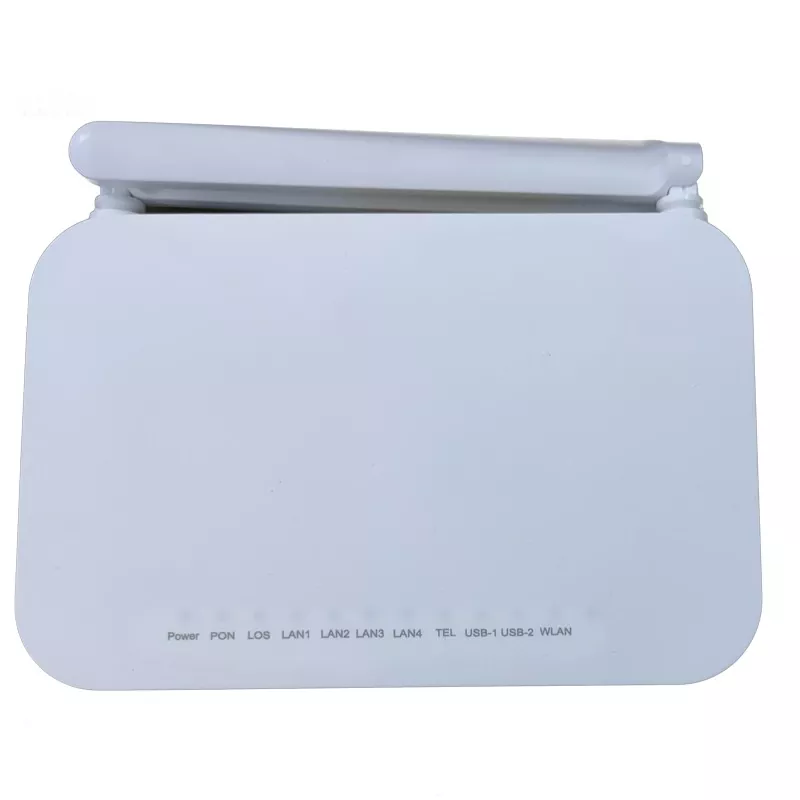

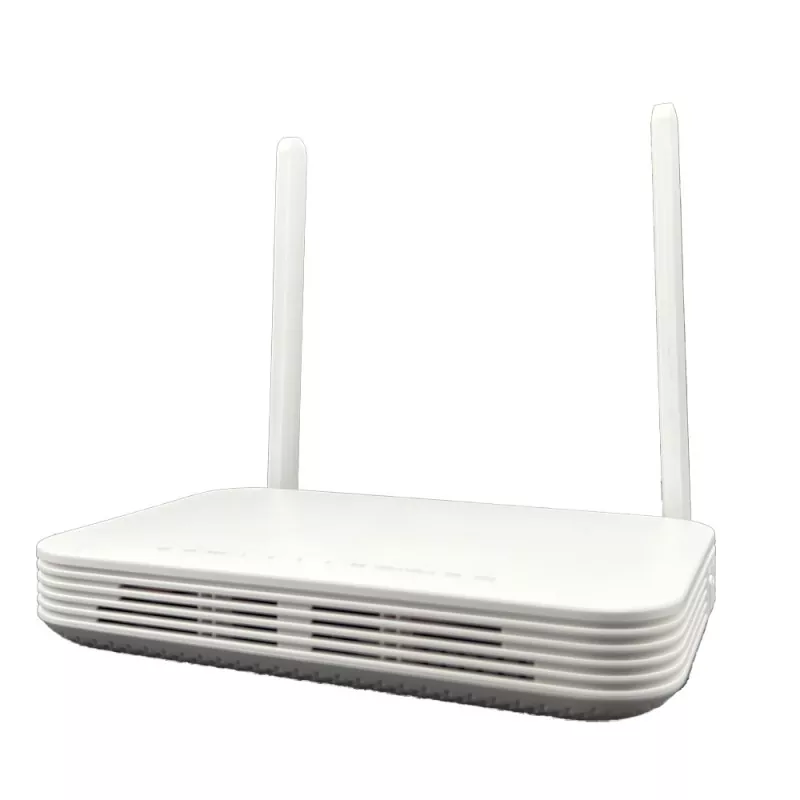

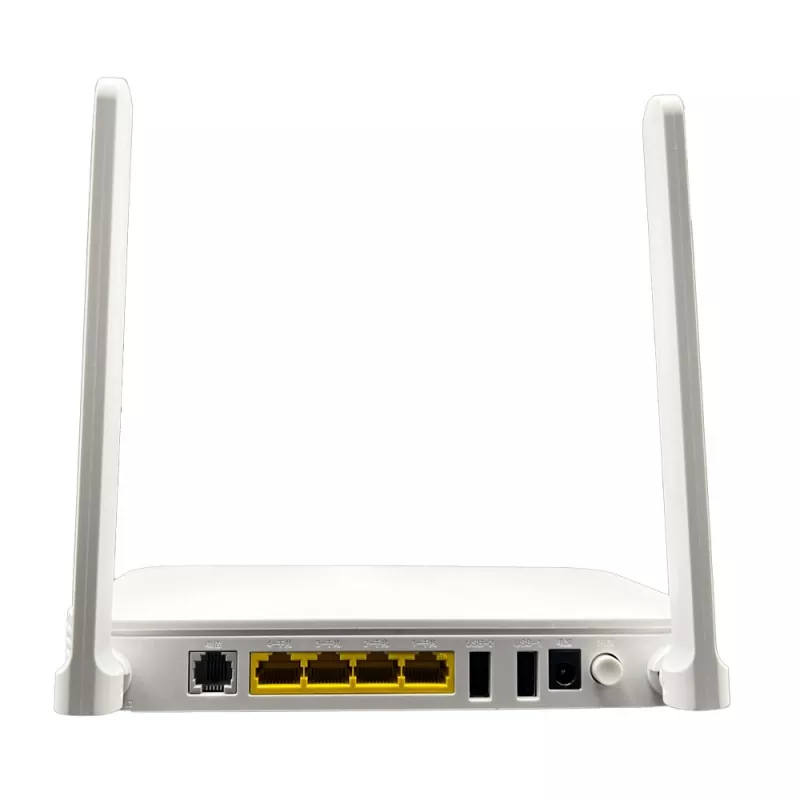

TENKILOMETERS supplementum est HN8346X6 DUAL Band WIFI6 XG-PON ONU ONT FTTH est Wi-Fi 6 10 Gigabit ONT Huawei accessus omnium opticorum accessus, quae per XG-PON vel asymmetricum 10G EPON accessum usorum ultra-latum cognoscit. Praebet 4 Gigabit Ethernet interfaces, 1 POTS vocis interfacies, 2 USB interfaces, 1 2.4G Wi-Fi interfaciem et 5G Wi-Fi interfaciem, efficaciter spondens vocem, datam et 4K/VR per altum faciendi transmissiones facultates Praebete clientibus cum idealibus. accessus optical solutiones ac facultates subsidii negotii futuri ordinati.
|
Morbi laoreet |
HN8346X6 |
|
Pondus (sine nibh potentia) |
Proxime CD g * |
|
Temperature operating |
0-40°C |
|
operating Umor |
5-95% RH (non-condensatione) |
|
Virtus nibh Input |
100-240 V AC, 50/60 Hz |
|
Ratio Power Supple |
11-14 V DC, 1.5 A |
|
UNI |
4 x GE, 1 x POTS, 1 x USB, 2.4G/5G Wi-Fi 6 |
|
NNI |
XG-PON |
|
Maximum Power * Consummatio |
18 W |
|
Antenna |
Antennae externae |
|
Modus institutionem |
Desktop |
|
Dimensiones (H x W x D) |
40 x 185 x 120 mm (sine antenna et pads externa) |
Fibra optica interface: SC/UPC
XG-PON: Classis N1/N2a/E1
Asymmetrica 10G EPON: Classis PRX 30
Sensus percipiendi;
XG-PON: -28dBm
Asymmetrica 10G EPON: -28.5dBm
esse;
Flumen 1260-1280nm, amni 1575-1580nm (XG-PON/asymmetricum 10G EPON)
Support band stop filter (WBF)
Flexibile mapping inter GEM portum et TCONT
verificationem modum:
SN/Password/SN + Signum/ OMCI-fundatur authenticas mutuas (XG-PON);
MAC/Key/LOID (asymmetrica 10G EPON)
Suscipe flumine et amni FEC (Accede Error Correctio)
DBA supportantes SR et NSR
Uplink et downlink rate:
flumine 2.5Gbps, amni 10Gbps (XG-PON);
1.25Gbps flumine, 10Gpbs amni (asymmetrica 10G EPON)
IEEE 802.11 b/g/n/ax (2.4G)
IEEE 802.11 a/n/ac/ax(5G)
2×2 MIMO (2.4G&5G)
Antennae quaestus: 5dBi
WMM (Wi-Fi Multi Media)
multa SSID
