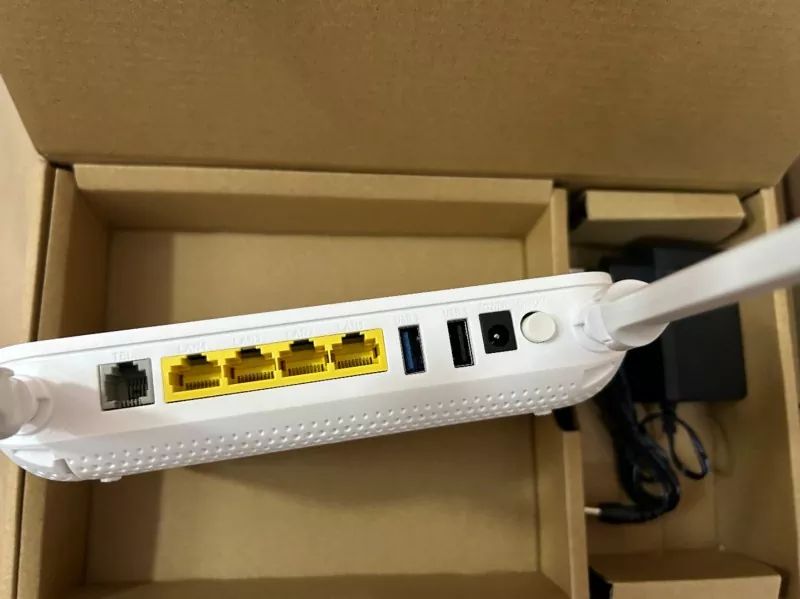

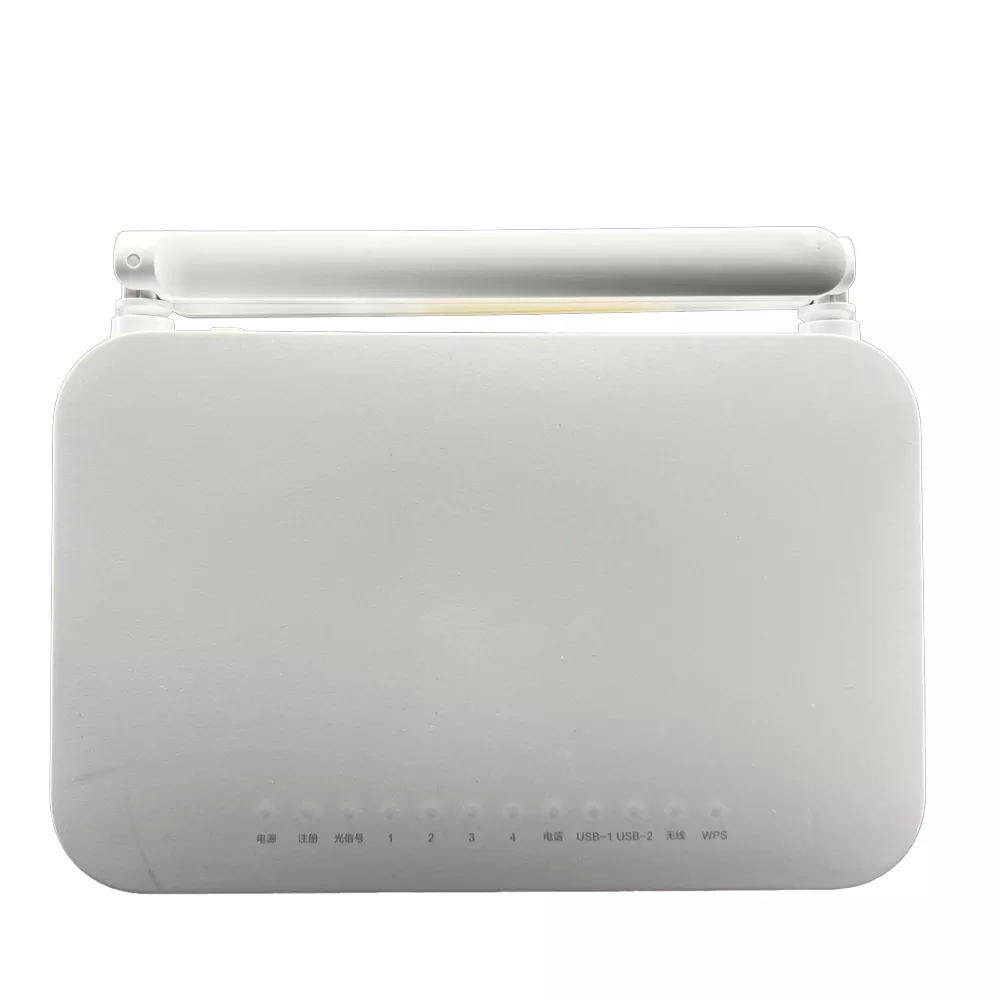

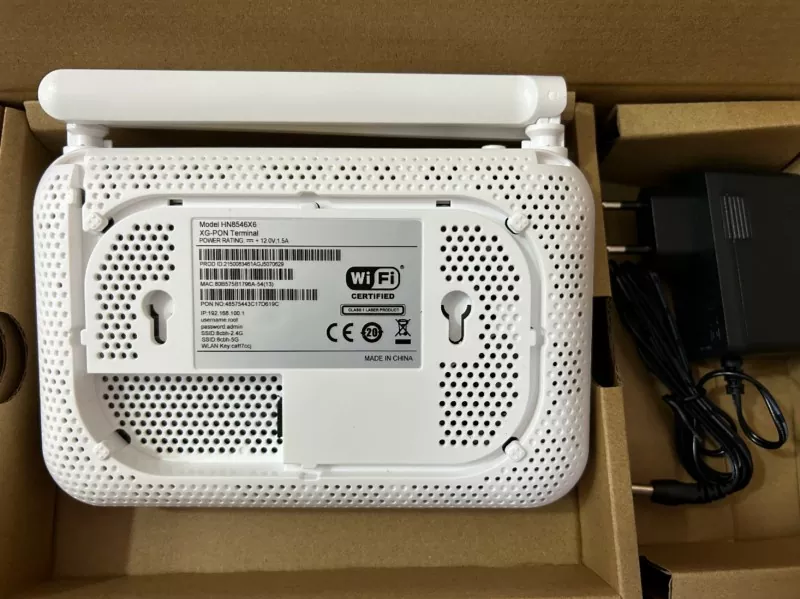

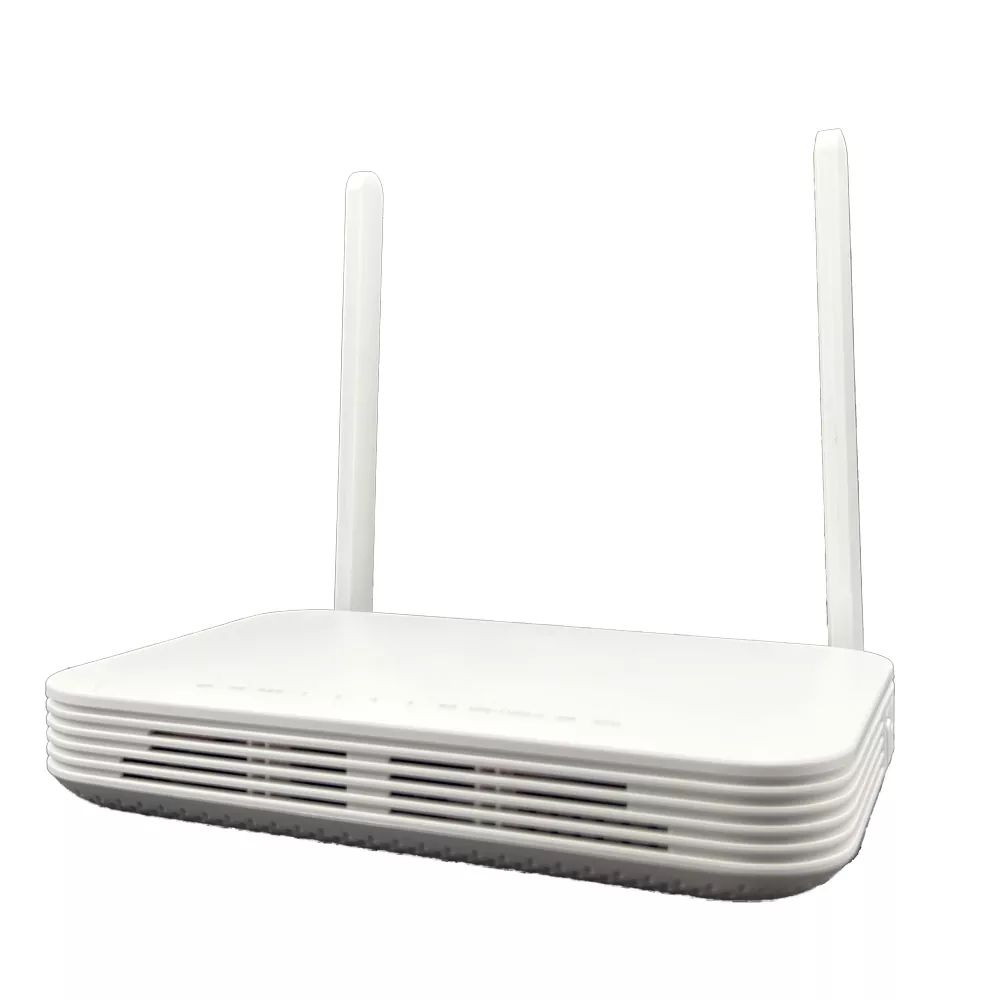

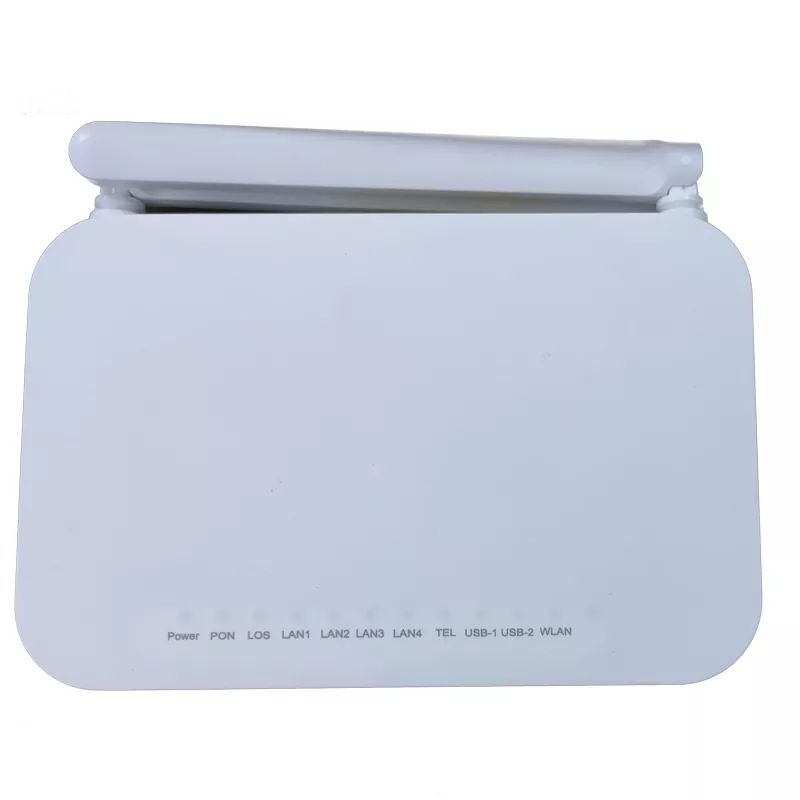

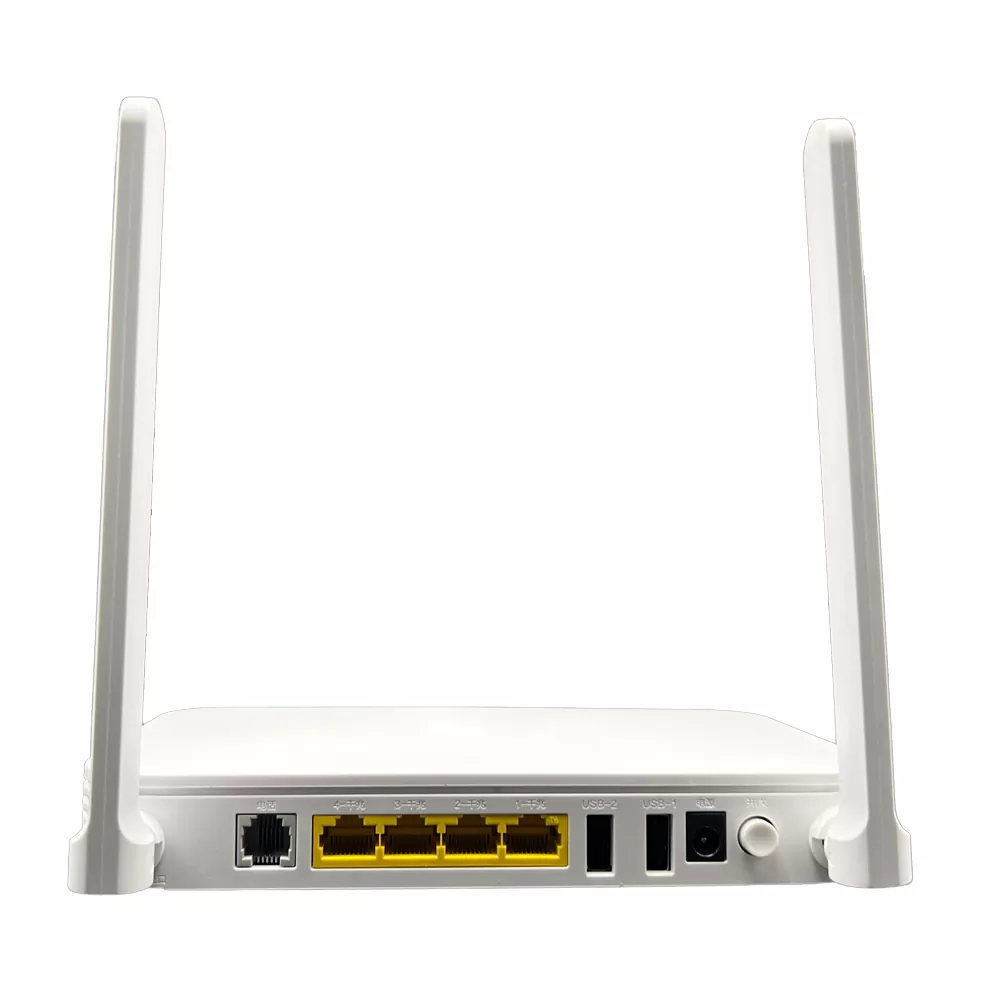

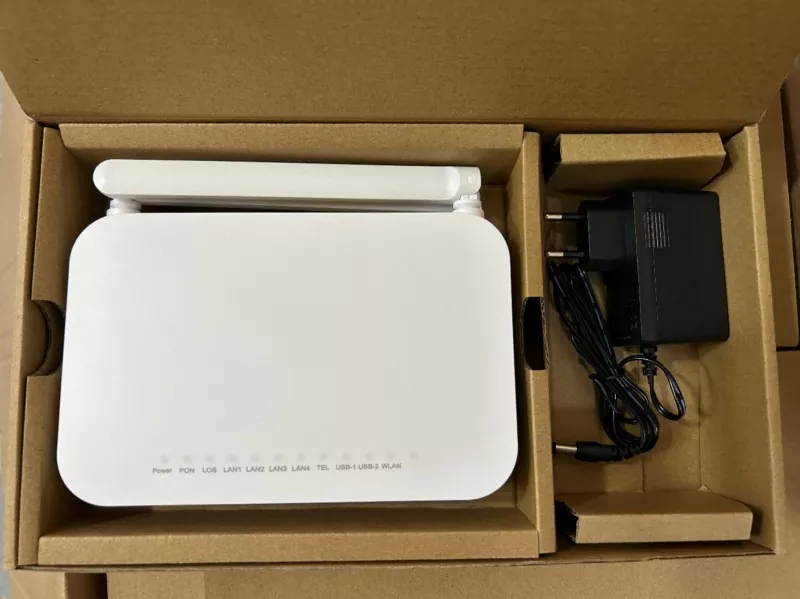

In HN8546X6 Band DUAL WIFI6 XG-PON ONU ONT FTTH est intellegens Wi-Fi 6 genus 10G Network Optica Terminatio cum 4 GE portibus, 1 POTS portum, et 2 USB portum, et 2.4G et 5G Wi-Fi 6 connectivity. Hoc exemplum 10-Gigabit capax Network Optical passivus (XG-PON) utitur technologia ad accessum ultra-latum bandi, altum effectum, et late coverage pro utentibus. Eximiam experientiam pro voce, data, et High Definitio (HD) praestandi muneris ac futuri muneris subsidii facultatibus et retis subjicitur procuratio, ergo Huawei HN8145X6 10G FTTH subsidia conatibus valida solutiones accessus omnium opticorum construunt. plus futurum-orientatum muneris subsidii facultates — HN8546X6 adiuvat conatibus explicandas solutiones omnium accessuum competitive-optical.
|
Morbi laoreet |
HN8546X6 |
|
NNI |
XG-PON |
|
Port |
4 x GE, 1 x POTS, 1 x USB, 2.4G/5G Wi-Fi 6 |
|
Pondus (sine nibh potentia) |
Proxime CD g * |
|
Temperature operating |
0-40°C |
|
operating Umor |
5-95% RH (non-condensatione) |
|
Virtus nibh Input |
100-240 V AC, 50/60 Hz |
|
Ratio Power Supple |
11-14 V DC, 1.5 A |
|
Maximum Power * Consummatio |
18 W |
|
Antenna |
Antennae externae |
|
Modus institutionem |
Desktop |
|
USB Portus |
• USB 2.0 |
|
• FTP-fundatur network repono |
|
|
• File / Print sharing secundum SAMBA |
|
|
• DLNA munus |
|
|
Virtus salutaris |
COC V7 |
|
Dimensiones (H x W x D) |
40 x 185 x 120 mm (sine antenna et pads externa) |
Secundum generationem Wi-FI 6
IEEE 802.11 b/g/n/ax (2.4G).
IEEE 802.11 a/n/ac/ax (5G).
2 x 2 MIMO (2.4G et 5G).
Antennae compendium : 5 dBi.
Air interface rate: 574 Mbit/s (2.4G), 2.402 Gbit/s (5G).
notitia application muneris
Smart Services
Scheduled Wi-FI shutdown scheduling.
Smart Wi-FI communicantes: Portal/802.1X authenticas, et SoftGRE-substructio communicatio.
Smart o&M
IPTV video qualitatem diagnosis.
eMDI.
Perfide ONT Deprehensio et moderatio sui ipsius.
Aemulatio, test circuitus, et ansa-linea test.
PPPoE/DHCP simulatio probatio.
aemulatio WLAN
